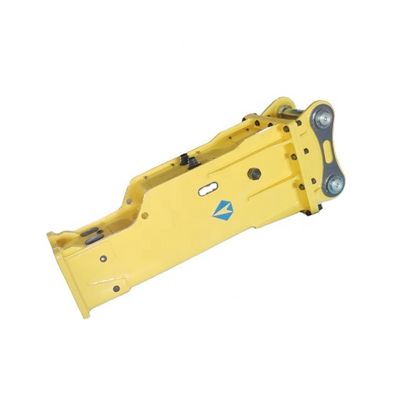

JISAN Hydraulic Rock Breaker Hammer with 19-26 ton Suitable Excavator Hydraulic-gas System and High Energy Impact Frequency

Grote Afbeelding : JISAN Hydraulic Rock Breaker Hammer with 19-26 ton Suitable Excavator Hydraulic-gas System and High Energy Impact Frequency

Productdetails:

Plaats van herkomst:	Shandong, China
Merknaam:	JISAN
Certificering:	CE
Modelnummer:	JSB1900T

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1

Contact

Gedetailleerde productomschrijving

Gewicht:	1989 Kg	Geschikte graafmachine:	19-26 ton
Stangdiameter:	140 mm	Systeem:	Hydraulisch-gassysteem
Kerncomponenten:	PLC, motor	Impact-systeem:	Hydraulisch + stikstof
Warmtebehandeling:	Verbeterde weerstand	Materiaal:	Zwaar staal
Stroomaanpassing:	Verstelbaar	Impactkracht:	Verstelbaar
Beat frequentie:	Verstelbaar	Draagdelen:	duurzaam
Vervaardigingstechnologie:	Zuid -Korea	Energie -efficiëntie:	Hoog
Impactfrequentie:	Hoog
Markeren:	19-26 ton Suitable Excavator Hydraulic Rock Breaker , Hydraulic-gas System Hydraulic Breaker Hammer , High Energy Impact Frequency Top Type Rock Hammer

JSB Hydraulic Rock Breaker, JISAN Top Type Rock Hammer

Feature Details

Selected raw material - high quality heavy duty wear resistant steel
Leading heat treatment technology enhances heat resistance and abrasion resistance
Adjustable flow from excavator power source to control impact force and beat frequency for different working conditions
High-quality durable wear parts for longer use and easy maintenance
Strong "hydraulic + nitrogen" impact system for increased stability
Advanced manufacturing facilities and technology imported from South Korea
High energy and impact frequency with optimized hydraulic unit, non-polluting and non-damaging to piles

JISAN Hydraulic Breaker Types

Silenced Hydraulic Breaker

Low noise, energy saving and environmentally friendly

Side Type Hydraulic Breaker

Versatile application including rock breaking, paving roads, and building demolition

Top Type Hydraulic Breaker

Designed for special operations requiring large elevation angles

Product Parameters

Item/Model	Weight (kg)	Length (mm)	Pressure (bar)	Flow (lpm)	Rate (bmp)	Hose (inch)	Chisel (mm)	Suit (ton)
JSB100	100	1000	90-120	15-25	900-1400	1/2	40	0.8-2.0
JSB200	167	1300	90-120	20-40	700-1200	1/2	45	1.2-3.0
JSB300	194	1400	90-120	25-50	600-1100	1/2	53	2.5-4.5
JSB400	363	1700	110-140	40-70	500-900	1/2	68/70	4-7
JSB600	450	1750	110-160	50-90	500-800	1/2	75	6-9
JSB800	730	2100	120-170	60-100	400-700	3/4	85	7-14
JSB900	970	2400	150-170	80-120	400-700	3/4	100	11-16
JSB1600	1950	2700	160-180	120-160	400-700	1	135	19-26
JSB1900	2050	2860	160-180	130-170	400-600	1	140	19-26
JSB3500	3000	3100	160-180	170-220	250-400	1	155	28-40
JSB4500	3300	3286	160-180	200-300	250-350	1 ¼	165	36-45
JSB5000	4250	3800	160-180	210-290	200-350	1 ¼	175	40-55
JSB5000	4900	3700	180-220	220-300	200-250	1 ¼	185	50-60
JSB6000	5400	4200	200-240	230-320	150-200	1 ¼	195	55-65
JSB6500	7400	4300	200-240	320-490	150-200	1 ¼	205	65-100

Applications

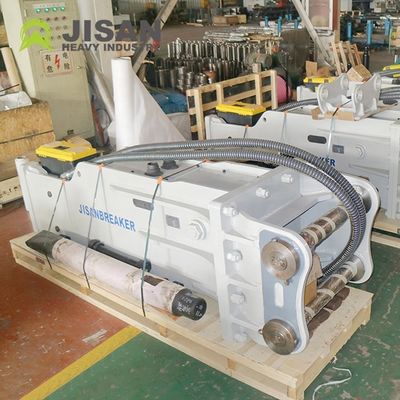

Product Packaging

Inner stretch film with export wooden case outer packaging (custom packaging available)
Standard free spare parts: two chisels, two hoses, one set of repair tools with tool box, one nitrogen bottle, one nitrogen

Our Advantages

JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 12 years experience
Products exported worldwide including India, Saudi Arabia, South America, Australia, New Zealand, Southeast Asia, USA, Europe, and South Africa
Korea made cylinder with NOK oil seal and durability design
Low noise operation with full-closed housing protection
Strong impact capability with longer service life
